LFG-P 12W

The YYZ LFG-P series linear LED pendant light fixtures offer a simple yet elegant solution for wall washing and grazing applications where crisp, single-color light is desired along vertical or horizontal surfaces. This pendant-mounted version is an evolution of the widely adopted YYZ Easy Grazer, known for its performance in large-scale projects across the globe. Designed for suspended installation, the LFG-P series provides versatility in architectural lighting with a clean, modern aesthetic. Its precision-engineered elliptical optics deliver uniform illumination with optimal LED overlap and minimal spill, ensuring a smooth wash of light across the target surface without unwanted glare or light loss.

Technical data

Print technical data
  • complies with the European standard
  • IP20
  • UL
LIGHT SOURCE Top quality surface mount LED with variable drive current
LED QUANTITY 6 LEDs / ft

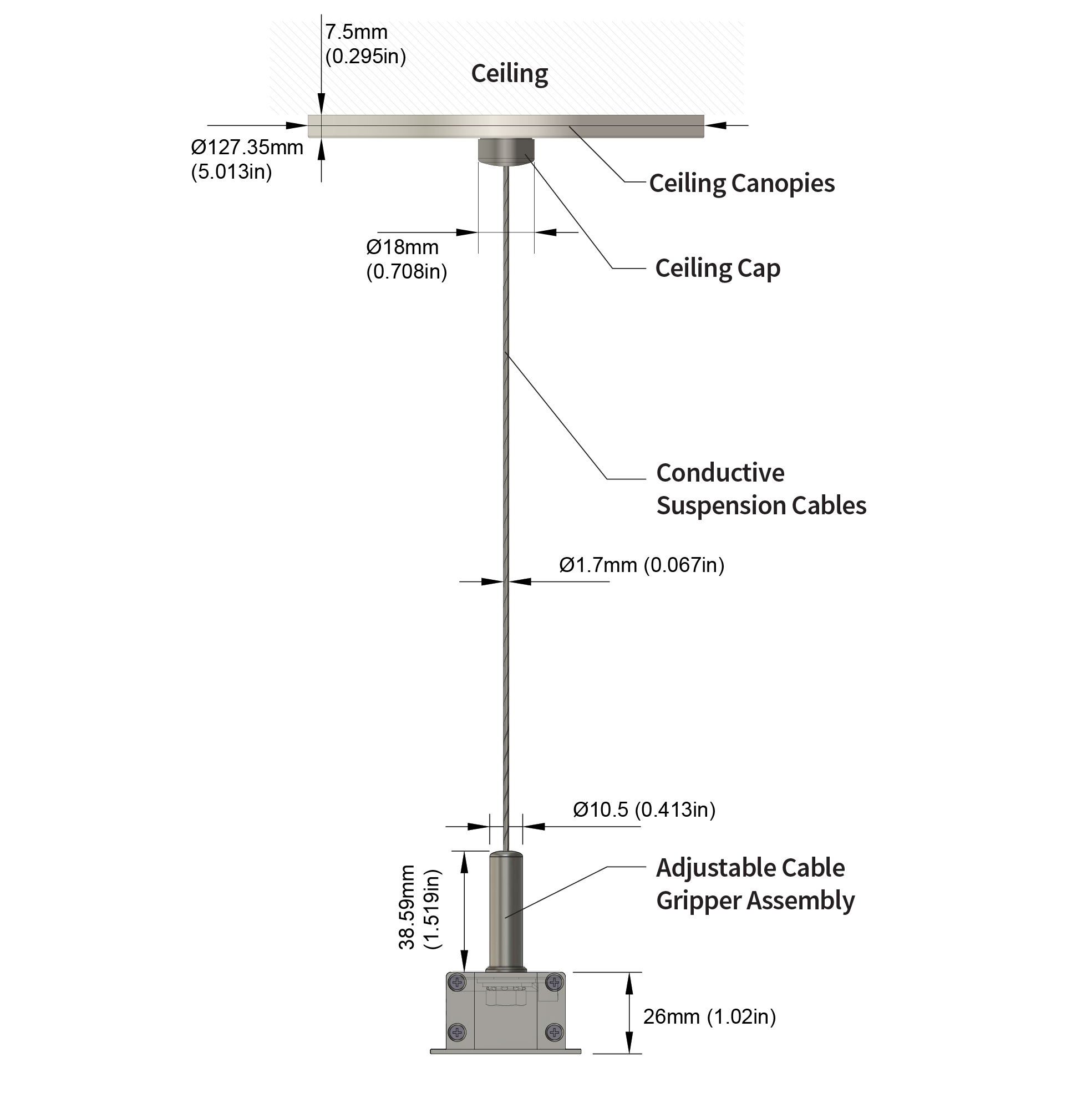

MOUNTING Pendant
LED COLOR 2200/2700/3000/3500/4000/5000/5700/6000/6500K, UNIQUE COLORS: (BLUE/RED/GREEN/AMBER)
IP RATING IP20
RATED POWER 12 W/ft
BEAM ANGLE 15º, 25º, 30º, 60º, 90º, 15ºx30º, 20ºx30º
BODY MATERIAL Aluminum
BODY FINISH WHITE, BLACK, SILVER
LAMP LIFE 50,000 hrs
CONNECTION INDOOR RATED CONNECTIONS
DIMENSIONS 26 x 44.59 mm
MAX DAISY RUN 19.7 ft / 6 m
SUPPLY VOLTAGE 24V DC
DRIVER / POWER SUPPLY DETAILS ON/OFF
DALI
DMX
0/1 - 10 V
DIMMING DALI, DMX, 0/1 -10 V
CRI 80+
NOTES COLOR RANGE:- SINGLE COLOR OPERATION / CUSTOM COLOR OPERATION
CONNECTORS : AM-AMP MINI-FIT CONNECTOR / CW-LEAD WIRING
OPTIONS NO OF LED / FT : 6 AMP / FT : 200mA/ft mA / Mtr : 660 TYPE OF LED : SAMSUNG
